Latch / For Access Doors & Connecting Cases / Small / Recessed

  • Image 1
  • 2 cases connected while stacked (and stationary) to provide stability for the upper case. NOT to be used for stacking cases while in transit or being moved.
  • Image 3
  • Image 4
  • Image 5
Price:
$9.00
SKU:
CNSL0737/68 + 2007 Catch Plate
Weight:
0.29 LBS
Availability:
In Stock
Shipping:
Calculated at checkout


Product Description

This latch can be used for creating access doors and connecting stacked cases. Top edge of recessed dish is offset to accommodate extrusions. The hook is spring-loaded to retract back flat against the dish when not fastened.

NOT TO BE USED FOR LID CLOSURES - HOOK LENGTH IS NOT COMPATIBLE WITH TONGUE & GROOVE CLOSURE DISTANCES. SEE OUR OTHER SMALL VALANCE-SPANNING LATCHES FOR SPECIFIC LID CLOSURE OPTIONS. NOT TO BE USED FOR CONNECTING CASES WHILE IN TRANSIT, OR BEING MOVED IN ANY WAY - ONLY TO SECURE THEM WHILE BEING USED IN A FIXED (STATIONARY) POSITION TO PROVIDE STABILITY FOR THE TOP CASE, SUCH AS A 2-CASE STACKED PHOTO BOOTH ASSEMBLY.

Rivets Required For Installation: 10

Strike Plate for hook included

Four of the rivets require backing washers, or a backplate, as those rivets will install through bare wood internally. The top two rivets install through the aluminum tongue & groove, or hybrid, extrusions and therefore require no backing washers.

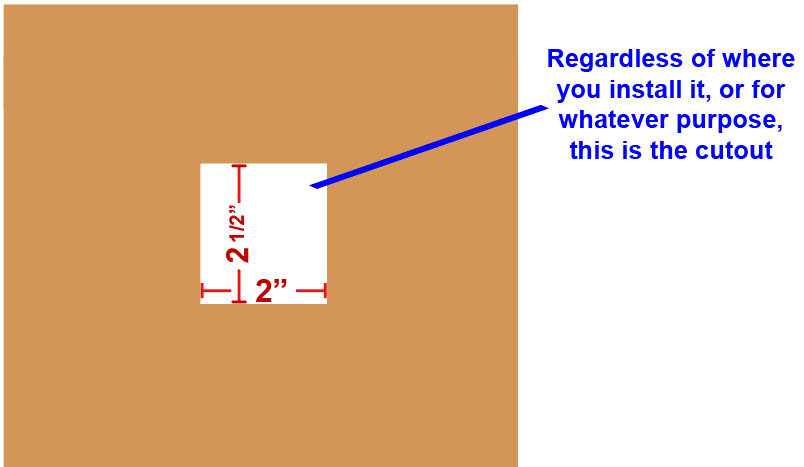

THIS ITEM REQUIRES A HOLE CUTOUT IN THE CASE WALL FOR INSTALLATION.

TIP FOR PROPER INSTALLATION SPACING BETWEEN LATCH HOOK AND CATCH PLATE KEEPER:

The best way to gauge proper fit is as follows:

1. Make your cutout for the recessed latch dish in your case body. Be sure your cutout is positioned properly so that the "throw" of the latch hook falls into an area of the lid that will properly accommodate the catch plate.
2. Have your hybrid tongue & groove in place (doesn't have to be mounted yet with rivets - can tape in place) and place your lid onto the body with both of their hybrid tongue & groove in place as if the lid is closed (again, no rivets required - taping in place to hold still is fine).
3. Make sure that your butterfly twist latch portion is in the fully open position (allowing for the hook to be at its farthest reach when you engage it)
4. Hold the catch plate keeper in place with one hand on the lid side of the closure to where you would approximate it might go.
5. With your other hand flip the hook until it reaches over to the catch plate keeper area.
6. Position the catch plate keeper so that the curved part of the hook is about an 1/8' beyond the edge where it will grip the catch plate keeper and hold firmly in place.
7. Allow the hook to retract back to the dish still holding the catch plate keeper in place.
8. Mark your holes for the catch plate keeper with a sharpie - then you are ready to drill your holes and mount you catch plate keeper.




Other Details

May Use Air Tight Gasket:
Part # CNSL0737G
May Use Backplate:
Part # CNSL0737/BP
Custom Hook Lentgh:
Call or E-mail Us
Specifications Drawings:
See Product Pictures Above
